Executive Summary & Key Takeaways
- Allocating 25% to 35% of total farm water spread area to a dedicated multi-stage reservoir system is the non-negotiable biosecurity firewall protecting against viral epidemics (WSSV, EHP) carried by estuarine creek water.
- A single un-baffled storage pond fails because incoming water short-circuits to the outlet; modern biosecure engineering mandates a Three-Stage Cascading Architecture: Sedimentation (Stage 1), Disinfection (Stage 2), and Biological Aging (Stage 3).
- Retaining raw water in Stage 1 for 36 to 48 hours without aeration precipitates 70% to 80% of suspended solids, slashing chemical chlorine demand from >20 ppm to <5 ppm and cutting chemical costs by over 55%.
- Stage 2 chemical disinfection requires 25 to 30 ppm Free Available Chlorine (FAC) broadcast across paddlewheel aerators at dawn (pH 7.4–7.8), maintained for a minimum 24-hour biocidal contact time to denature viral nucleocapsids.
- Stage 3 biological conditioning incorporates all-male GIFT Tilapia greenwater (1.0–1.5 kg/m²) and Bacillus probiotics to secrete natural antimicrobial peptides that suppress pathogenic luminous Vibrio by over 90%.
- Constructing the Stage 3 reservoir 0.5 to 0.8 meters above culture pond dykes enables 100% gravitational water transfer through 100-mesh filter socks, eliminating secondary diesel pumping and cutting farm energy costs by 35% to 45%.
Field Case Study: 10-Hectare Farm Biosecurity Infrastructure Upgrade
A 10-hectare coastal farm drawing water from a brackish tidal creek suffered recurring WSSV crashes due to direct creek pumping. Under AquaSangham advisory, the estate reconfigured 3 hectares into a 3-stage reservoir system (1.2 ha settling, 1.0 ha chlorination, 0.8 ha biological aging). By settling raw water for 48 hours to drop suspended solids from 340 mg/L to 45 mg/L, the farm slashed chlorine dosing from 45 ppm down to 25 ppm, saving ₹3.8 Lakhs per year in chemical costs. Introducing Oreochromis niloticus (GIFT tilapia) greenwater bio-priming and Bacillus subtilis inoculation in Stage 3 pre-conditioned water with natural diatom blooms before gravity infill into culture ponds. The estate achieved 100% crop survival over five consecutive turns, harvesting 54 tons annually with a 1.22 FCR and ₹62 Lakhs annual net margin.
1. The Reservoir Imperative: Why Direct Creek Pumping Fails
In commercial coastal aquaculture, water is simultaneously the lifeblood of production and the primary conduit for catastrophic biological pathogens. Across the maritime shrimp-producing states of India—including Andhra Pradesh, Gujarat, Tamil Nadu, Odisha, and West Bengal—the vast majority of farms draw their intake water from shared tidal creeks, brackish estuaries, and coastal drainage canals. These shared common waterbodies are subject to continuous biological and chemical contamination: municipal sewage discharge, agricultural pesticide runoff, and, most critically, untreated effluent discharges from neighboring aquaculture facilities suffering from active disease epidemics.
When an earthen or lined culture pond is filled directly from a tidal creek without pre-treatment, the farm directly imports the pathogenic ecosystem of the estuary. Wild crustacean vectors—such as planktonic copepods (Acartia, Oithona, Calanus), mysid shrimp, wild larval penaeids, and swimming crab zoeae (Portunus, Scylla)—infiltrate the pond. These wild vectors harbor latent, high-titer infections of White Spot Syndrome Virus (WSSV), Enterocytozoon hepatopenaei (EHP), and Infectious Myonecrosis Virus (IMNV). Furthermore, raw estuarine water carries massive concentrations of suspended colloidal clay, organic detritus, and pathogenic Vibrio parahaemolyticus strains. Pumping this water directly into culture ponds causes immediate chemical turbidity, exhausts mineral alkalinity, and establishes a deadly disease reservoir before post-larvae are even stocked.
The non-negotiable engineering solution that separates professional, consistently profitable aquaculture enterprises from chronic crop failures is the implementation of a Dedicated Multi-Stage Reservoir System. Global biosecurity standards dictate that a minimum of 25% to 35% of a farm's total water spread area must be dedicated strictly to water storage, sedimentation, sterilization, and biological conditioning. Treating a reservoir as 'wasted productive land' is a fatal economic misconception. A scientifically engineered three-stage reservoir network acts as an impenetrable biological firewall: it eliminates wild vectors, slashes chemical chlorine expenditures by 60% to 65% through prior sedimentation, stabilizes ionic mineral ratios, and pre-conditions pristine, probiotic-rich diatom water for instant pond top-ups. This master technical guide details the architectural blueprint, hydraulic dynamics, chemical sterilization kinetics, and biological priming protocols for managing commercial shrimp farm reservoirs.
Epidemiological Risk Profile of Direct Creek Intake
1. Viral Infiltration: Wild estuarine zooplankton vectors carry latent WSSV and EHP loads. Direct pumping bypasses biological barriers, introducing millions of infectious viral particles into the culture environment.
2. Silt and Colloidal Turbidity: Raw creek water frequently carries Total Suspended Solids (TSS) exceeding 350 mg/L, coating pond beds with anaerobic silt and blocking sunlight required for microalgae.
3. Chemical Waste: Applying disinfectants directly to murky creek water wastes over 65% of the chemical on oxidizing inert organic mud rather than killing pathogens.
| Reservoir Stage | Retention Time | Primary Function | TSS Reduction (%) | Pathogen Status | Target Turbidity | Dissolved Oxygen | Water Color |
|---|---|---|---|---|---|---|---|
| Raw Creek Intake | 0 Hours (Continuous) | Initial tidal water extraction | 0% Baseline (300–500 mg/L) | High viral & vector load (WSSV/EHP) | < 15 cm (Muddy) | 3.5 – 5.5 ppm | Murky brown, heavy silt |
| Stage 1: Sedimentation | 36 – 48 Hours Static | Gravity settling & clay precipitation | 70% – 80% Reduction (< 50 mg/L) | Vectors viable / Silt eliminated | 25 – 35 cm (Clearing) | 4.0 – 6.0 ppm | Pale grey-green, settling |
| Stage 2: Chlorination | 24 – 36 Hours Aerated | Total chemical disinfection (25–30 ppm) | > 90% Reduction | 100% Eradicated (Sterile) | > 60 cm (Crystal clear) | 6.5 – 8.0 ppm | Clear amber-bleach tone |
| Stage 3: Biological Aging | 48 – 72 Hours Dynamic | De-chlorination, probiotics & greenwater | > 95% Organic Balance | Beneficial microflora dominant | 30 – 40 cm (Diatom bloom) | 6.0 – 7.5 ppm | Lush golden-brown diatom bloom |
Never fill your reservoir during the lowest ebb tide or during agricultural canal pesticide washouts. Schedule primary intake pumping exclusively during the peak high-tide window (spring tides) when oceanic water brings maximum salinity, superior mineral hardness, and lowest silt concentration.
2. Architectural Blueprint: The Three-Stage Reservoir Matrix
A single open water storage pond is inadequate for commercial biosecurity. Water pumped in from a creek will short-circuit directly from the intake pipe to the outlet sluice, resulting in un-sedimented, partially sterilized water entering production ponds. Modern aquaculture engineering divides reservoir infrastructure into a Three-Stage Cascading Architecture:
1. Stage 1: Primary Sedimentation & Silt Clarification Basin (Allocated ~40% of reservoir area; depth 2.0 to 2.5 meters). Dedicated strictly to physical gravity settling of suspended sand, river mud, and heavy clay colloids.
2. Stage 2: Chemical Sterilization & Disinfection Basin (Allocated ~35% of reservoir area; depth 1.5 to 1.8 meters). Equipped with internal baffled dykes and paddlewheel aerators for high-rate chlorine or ozone disinfection.
3. Stage 3: Biological Aging & Probiotic Priming Basin (Allocated ~25% of reservoir area; depth 1.2 to 1.5 meters). Dedicated to chlorine de-gassing, mineral balancing, probiotic bio-priming, and tilapia greenwater co-culture.
Construct dividing dykes between reservoir stages with reinforced clay cores and 1:1.5 slope gradients. Incorporate elevated overflow skimmer weirs fitted with concrete baffles rather than bottom culvert pipes, ensuring only the cleanest, oxygen-saturated surface water cascades from one stage to the next.
3. Stage 1: Gravity Sedimentation, Silt Clarification & Turbidity
The primary function of Stage 1 is physical, non-chemical clarification via gravity sedimentation. Raw creek water frequently contains Total Suspended Solids (TSS) exceeding 300 to 500 mg/L, comprising heavy sand, fine silt, and colloidal clay platelets:
- The Physics of Sedimentation (Stokes' Law): Silt particles suspended in water settle at a velocity governed by particle diameter, fluid viscosity, and gravitational acceleration. In an undisturbed, static water column, coarse sand particles settle within minutes, while fine silt and clay particles require 36 to 48 hours of quiescent retention to precipitate.
- Slashing Chemical Chlorine Demand: Applying chlorine directly to turbid Stage 1 water is an immense financial waste. Chlorine reacts non-selectively with suspended organic silt and dissolved organic carbon (DOC), consuming 15 to 25 ppm of chemical before any free chlorine is available to kill pathogens. By retaining water in Stage 1 for 48 hours without aeration, gravity sedimentation reduces suspended solids by 70% to 80% and slashes chemical chlorine demand from >20 ppm down to <5 ppm, saving the farm hundreds of thousands of rupees in bleaching costs.
- Hydraulic Baffling & Skimmer Weirs: Stage 1 is engineered with internal earthen baffles or heavy-duty HDPE baffle curtains that force incoming water to travel a serpentine path, preventing hydraulic short-circuiting. Clean, settled surface water overflows into Stage 2 via an elevated skimmer weir or floating decanting pipe, leaving the heavy mud and settled silt trapped on the Stage 1 floor.
If incoming creek water contains ultra-fine colloidal clay that refuses to settle after 36 hours, broadcast Agricultural Gypsum (calcium sulfate dihydrate, CaSO4·2H2O) @ 200 to 300 kg/ha directly into the Stage 1 intake plunge pool. Bivalent calcium ions neutralize negative clay surface charges, triggering rapid flocculation without altering water pH.
4. Stage 2: Precision Chemical Sterilization & Contact Kinetics
Once clarified water enters Stage 2, it undergoes total chemical sterilization to obliterate all viral pathogens, microsporidian spores, bacterial colonies, and wild zooplankton vectors:
- Chemical Dosing Protocol: Because the water has been pre-clarified in Stage 1, an active chlorine target of 25 to 30 ppm of Free Available Chlorine (FAC) is sufficient to achieve complete sterilization. This equates to 800 to 950 kg of fresh 32% Commercial Bleaching Powder or 380 to 450 kg of 65% High-Test Hypochlorite (HTH) per hectare-meter.

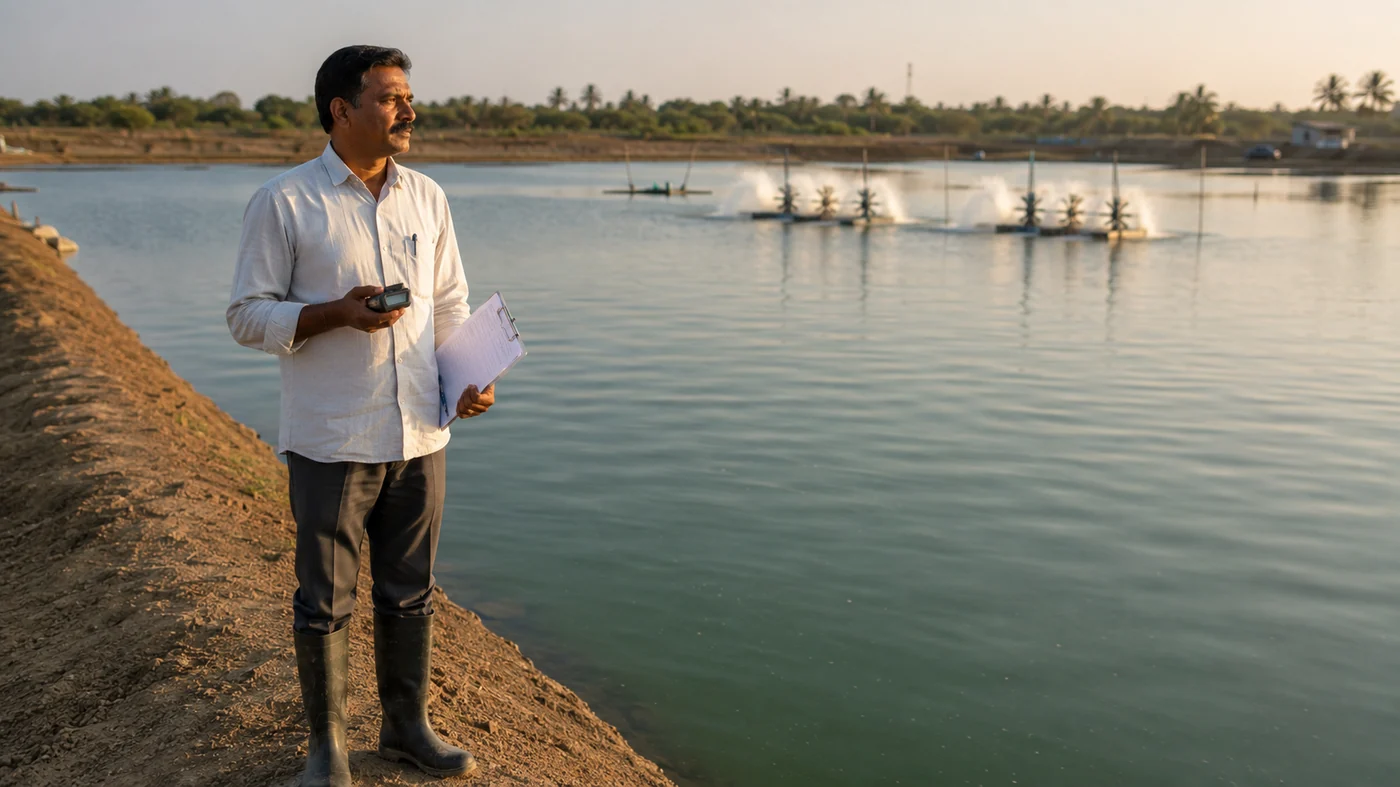

- Aerator Synchronization & Serpentine Contact Flow: Stage 2 is equipped with long-arm paddlewheel aerators (6 to 8 HP per hectare of reservoir) positioned to drive dissolved chlorine through a baffled channel. The chemical must be dissolved in 200L drums, decanted to remove insoluble lime sludge, and broadcast across aerator wakes at 05:00 AM when water pH is at its lowest (maximizing germicidal Hypochlorous Acid HOCl formation).
- Mandatory Biocidal Contact Time: The chlorinated water must be retained in Stage 2 with continuous aeration for a minimum of 24 to 36 hours. This guarantees that viral nucleocapsids (WSSV) and chitinous microsporidian spore coats (EHP) are completely denatured. Wild crab zoeae, copepod vectors, and weed fish are 100% eradicated within 4 hours.
Always verify Free Available Chlorine residual in Stage 2 using a calibrated digital DPD colorimeter 12 hours post-dosing. The residual must test at a minimum of 10 to 12 ppm FAC; if residual is below 5 ppm, the organic load was higher than anticipated and an immediate booster dose of 10 ppm chlorine must be applied.
5. Stage 3: Biological Aging, Probiotic Priming & Tilapia Greenwater
After chemical sterilization in Stage 2, water cannot be introduced directly into shrimp culture ponds. It contains residual chlorine, oxidized chemical radicals, and is biologically sterile—devoid of the beneficial microalgae and bacteria required to sustain post-larvae. Water is transferred into Stage 3 for biological conditioning:
1. De-Chlorination Verification: Test water twice daily with a calibrated digital DPD colorimeter. Under natural sunlight and paddlewheel aeration, free chlorine naturally photodegrades within 4 to 6 days. If water is needed urgently for pond filling or emergency top-up, neutralize residual chlorine stoichiometrically using technical-grade Sodium Thiosulfate Pentahydrate (Na2S2O3·5H2O) @ 1.05 kg per 1.0 kg of residual chlorine, verifying a reading of 0.00 ppm.
2. The 'Tilapia Greenwater' Biological Shield: In modern biosecure shrimp estates, Stage 3 is stocked with all-male Nile Tilapia or GIFT Tilapia (Oreochromis niloticus) at a density of 1.0 to 1.5 kg of fish per square meter, housed inside suspended net cages (hapas) or free-swimming.
- The Greenwater Mechanism: Tilapia graze on organic particles and secrete a thick, natural epidermal mucus containing powerful antimicrobial peptides and lysozymes. Furthermore, tilapia omnivorous grazing suppresses filamentous blue-green algae while stimulating dense, stable blooms of beneficial microalgae (Chlorella, Chaetoceros, and Isochrysis). Research by ICAR-CIBA and international mariculture institutes confirms that water conditioned with tilapia greenwater actively suppresses pathogenic luminous Vibrio colonies (reducing Vibrio harveyi and V. parahaemolyticus counts by >90% compared to raw water).
3. Probiotic Bio-Priming: Broadcast multi-strain Bacillus soil and water probiotics (Bacillus subtilis, B. licheniformis, and B. megaterium @ 1.5 kg/ha) combined with fermented organic carbon (20 kg rice bran + 10 kg molasses + 1 kg active yeast per hectare) into Stage 3. The beneficial Bacillus strains colonize the aquatic volume, establishing a mature, balanced microbial loop that prevents secondary pathogen colonization.
Ensure all tilapia stocked in Stage 3 are strictly monosex all-male fingerlings. Storing mixed-sex tilapia leads to uncontrolled breeding, producing millions of tiny fry that can slip through 100-mesh supply filters into culture ponds where they compete with shrimp for feed.
6. Reservoir Hydraulics: Gravity Distribution & Energy Optimization
A major hidden operating cost in aquaculture is electrical and diesel energy expended on pumping water. A poorly designed farm requires secondary pumping: pumping from the creek to the reservoir, pumping from the reservoir to the supply canal, and pumping from the canal into each culture pond:
- The Gravitational Hydraulic Advantage: When constructing a farm, the earthen dykes and bed of the reservoir system must be engineered at an elevated topological contour: The bed of Stage 3 should be constructed 0.5 to 0.8 meters higher than the maximum water level of the culture ponds. Water is pumped only once: from the estuarine creek into Stage 1. From Stage 1, water flows by gravity over the skimmer weir into Stage 2. From Stage 2, water flows by gravity into Stage 3. From Stage 3, water discharges directly into the main concrete supply canal through an automated sluice gate.
- Gravitational Distribution: When culture ponds require filling or daily water exchange, opening the pond intake valve allows pre-conditioned, biosecure Stage 3 water to flood into the culture pond entirely by gravity through 100-mesh monofilament filter socks. This gravitational architecture eliminates secondary diesel pumping, reducing farm electrical expenditures by 35% to 45% over the course of a crop.
Install secondary 100-mesh (150-micron) monofilament filter socks over every gravity supply pipe discharge into the culture ponds. Even in a biosecure reservoir, airborne water insects (backswimmers, water beetles) can occasionally colonize Stage 3; the 100-mesh bag acts as the final physical barrier protecting your post-larvae.
7. Reservoir Maintenance, Annual Desiltation & Sludge Purging
Over a 12-month period, Stage 1 reservoirs trap hundreds of tons of estuarine sand, river silt, and clay. If unmanaged, this accumulated sediment reduces reservoir volume, diminishes hydraulic retention time, and re-contaminates incoming water:
1. Silt Sump & Bottom Scour Sluices: The entrance of Stage 1 should feature an excavated silt trap (1.5 meters deeper than the reservoir bed) equipped with an independent bottom scour pipe. Opening this scour pipe during low tide periodically flushes the heaviest sand deposits out of the farm.
2. Annual Desiltation and Drying: Once per year during the dry summer season, Stage 1 must be completely drained. Utilize an agricultural excavator or high-pressure slurry dredge pump to excavate accumulated black sediment, depositing the silt on external dykes.
3. Basin Sun-Drying and Liming: Allow the empty reservoir floor to sun-dry until deep cracking occurs (10 to 15 cm depth). Broadcast Agricultural Limestone (CaCO3) @ 2,000 to 2,500 kg/ha across the dry bed to neutralize benthic acidity and oxidize residual sulfides before refilling for the subsequent production cycle.
Never dump dredged reservoir silt into natural public creeks or neighboring farm channels. Saline silt is rich in anaerobic sulfides; dry the silt on outer dyke slopes, blend with gypsum, and use it to reinforce farm flood defense embankments.
Summary Operational Action Checklist
Frequently Asked Questions
Q: Why is a single storage pond inadequate for shrimp farm biosecurity compared to a 3-stage reservoir?
A single open storage pond suffers from hydraulic short-circuiting: fresh water pumped from a creek immediately mixes with existing water and flows directly to the culture ponds within hours. Silt does not have time to settle, chlorine cannot achieve uniform lethal contact time without harming downstream biology, and viral vectors (copepods, crab zoeae) easily bypass the system. A Three-Stage Cascading Architecture physically isolates each critical step—Sedimentation (Stage 1), Chemical Sterilization (Stage 2), and Biological Conditioning (Stage 3)—ensuring that 100% of water entering culture ponds is certified vector-free and biologically balanced.
Q: How does 48-hour static sedimentation in Stage 1 dramatically lower farm chemical bleaching costs?
Chlorine is a non-selective chemical oxidizer that reacts indiscriminately with all suspended organic and inorganic particles in water. In raw creek water carrying 350 mg/L of suspended clay and silt, the 'Chlorine Demand' consumes 15 to 25 ppm of chemical before any free available chlorine is left to kill pathogens. Allowing raw water to settle statically in Stage 1 for 36 to 48 hours precipitates 70% to 80% of suspended solids by gravity. This slashes baseline chemical demand to under 5 ppm, allowing the farm to achieve complete sterilization in Stage 2 with only 25 ppm chlorine instead of 45+ ppm, saving over ₹3.5 Lakhs annually on a 10-hectare farm.
Q: What is 'Tilapia Greenwater' and how does it biologically protect shrimp against pathogenic Vibrio?
'Tilapia Greenwater' is an eco-biological biosecurity technique where all-male Nile or GIFT Tilapia (Oreochromis niloticus) are cultivated inside the reservoir (Stage 3). Tilapia feed omnivorously on suspended organic particles and secrete natural epidermal mucus containing bactericidal enzymes and antimicrobial peptides. Furthermore, their metabolic grazing suppresses toxic blue-green algae while stimulating beneficial diatom and green microalgae blooms (Chlorella, Chaetoceros). Studies by ICAR-CIBA confirm that greenwater conditioned by tilapia secretes natural inhibitory factors that suppress pathogenic luminous Vibrio (V. harveyi and V. parahaemolyticus) counts by more than 90%.
Q: How can a farm design its reservoir hydraulics to eliminate secondary diesel pumping costs?
By constructing the Stage 3 reservoir at an elevated topological contour: elevating the earthen bed and full-supply level of Stage 3 approximately 0.5 to 0.8 meters higher than the top water level of the culture ponds. Water is pumped only once from the creek into Stage 1, and subsequently cascades by gravity over skimmer weirs through Stage 2 and Stage 3. When culture ponds require filling or daily top-up, operators simply open manual sluice valves, allowing water to flood into the ponds entirely by gravity. This eliminates secondary diesel pump sets, reducing farm fuel and electricity costs by 35% to 45%.
Q: How frequently should Stage 1 sedimentation reservoirs be desilted and cleaned?
Stage 1 sedimentation basins should undergo full desiltation once every calendar year during the dry summer fallow period. Over two crop cycles, Stage 1 traps between 100 and 250 tons of estuarine silt and organic detritus. If allowed to accumulate beyond 50 cm depth, it reduces water retention time, causes silt resuspension during windy days, and consumes dissolved oxygen. Drain Stage 1 completely, excavate accumulated silt with a long-arm excavator or dredge pump onto external dykes, and sun-bake the floor with Agricultural Lime (2,000 kg/ha) before refilling.
